3 Step Swinging Dock Ladders
A1A Dock Products 3 Step Swinging Dock Ladder, Standard 2" Steps, Aluminum.
Regular price
$275.00
Couldn't load pickup availability
Got questions?
Feel free to get in touch
Ask an expert!

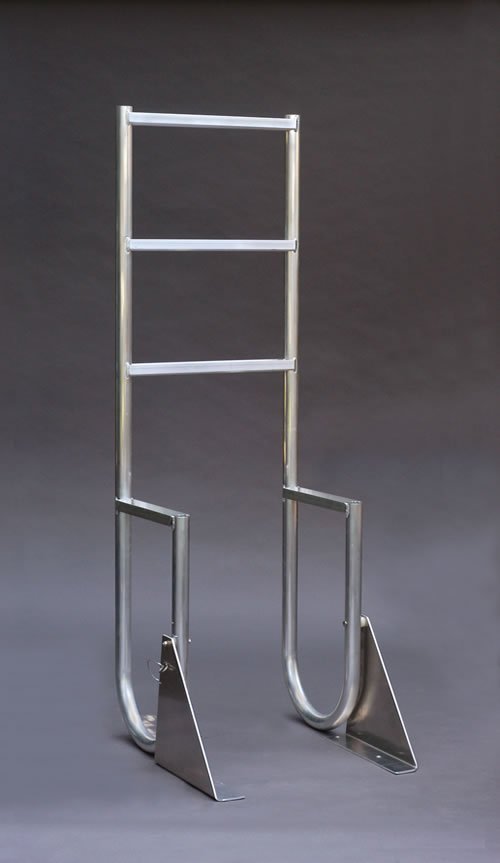

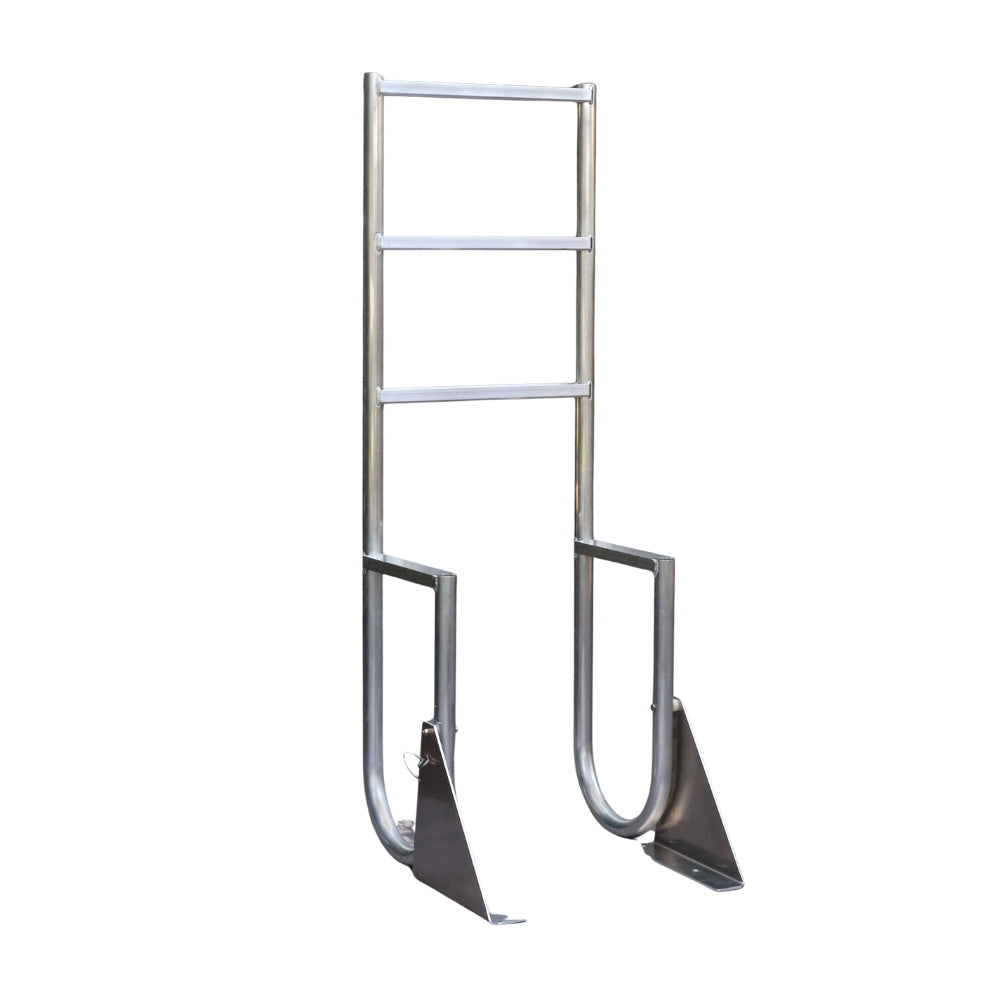

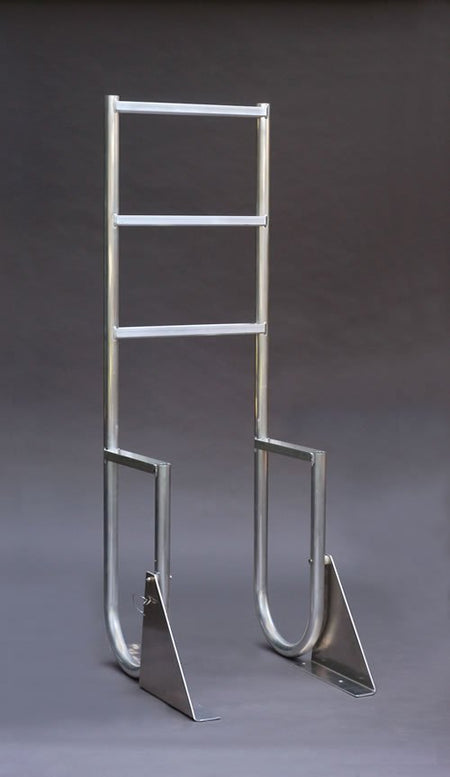

- (Picture shown is 3 Step Model with Standard 2" Steps/Treads).
- 3 Step Swinging Dock Ladder, Standard 2" Step, Aluminum.
- Swing ladder allows you to pivot the ladder 180 degrees out of the water. This keeps the entire ladder out of the water and helps prevent marine growth.

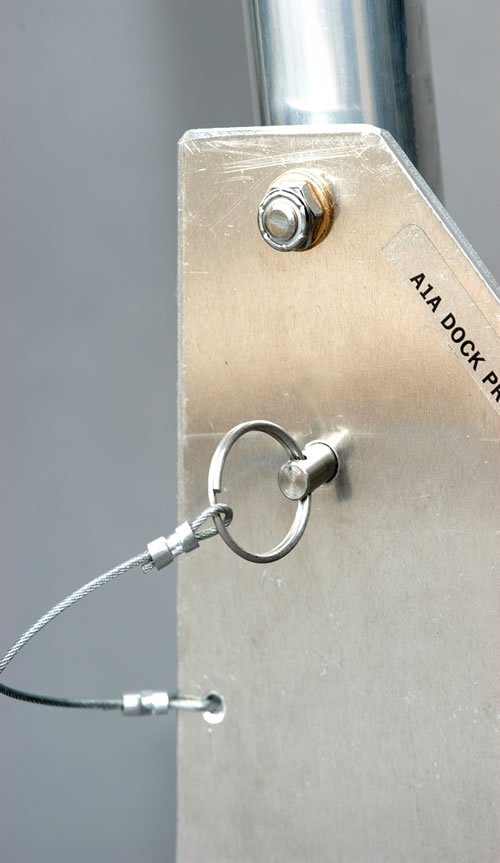

- Includes stainless steel locking pin to lock ladder into place when in the upright position.
- Constructed from 6063 T5 Marine Grade Aluminum.
- Tig Welded for maximum strength and durability.
- UPS Shippable 2-piece design. Handles are removable, steps are all-welded and assembled with 2000 lb sheering factor stainless steel bolts. This helps reduce shipping costs.
- Steps have extruded grooves to reduce slippage.
- 650 lb Max weight capacity.
- Requires 4 - 1/2" diameter bolts for mounting to your dock. Mounting bolts are not supplied since installations vary. Can be found at your local hardware store.

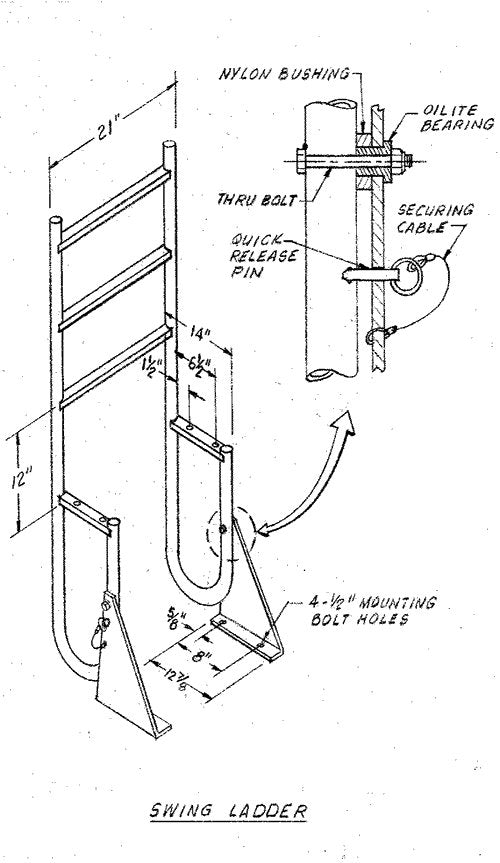

| Item #: | L-A1-SW3b |
| Finish: | Mill Finish |
| Tread Depth: | 2" |
| Ladder Width: | 21" |
| Step Height: | 12" |
| Handle Depth | 14" |
| Handle Height: | 23-1/4" |
| Overall Height (Raised): | 60" |
| Maximum Reach: | 36" |
| Weight Capacity: | 500 lbs. |
| Shipping Weight: | 23 lbs. |
| Manufacturer's Warranty: | 1 year, limited |
