3 Step Wide Step Swinging Dock Ladders
A1A Dock Products 3 Step Wide Step Swinging Dock Ladder, Wide 3.5" Steps, Aluminum.
Regular price
$281.72
Couldn't load pickup availability
Got questions?
Feel free to get in touch
Ask an expert!

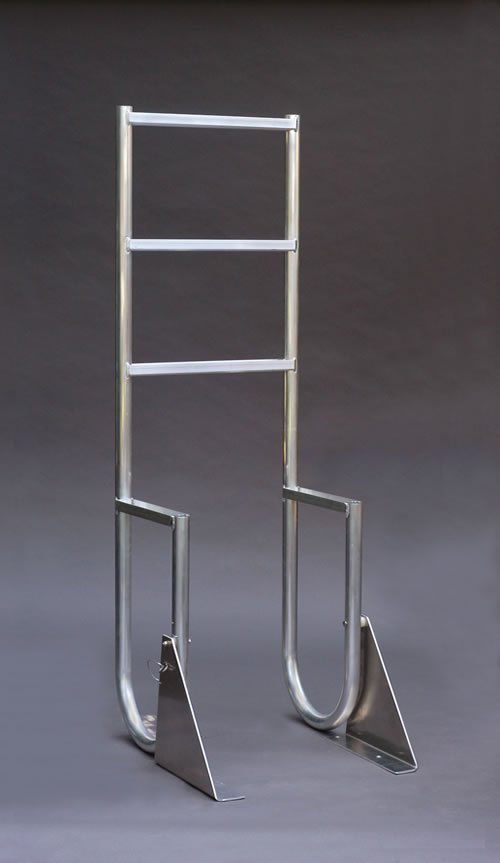

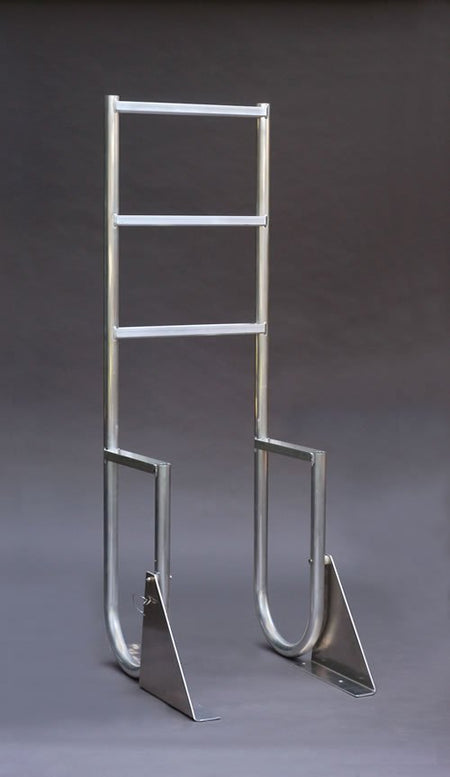

- (Picture shown is 3 Step Model with Standard 2" Steps/Treads).
- 3 Step WIDE STEP Swinging Dock Ladder, Wide 3.5" Step, Aluminum.
- Wider steps makes climbing in and out of the water more comfortable.

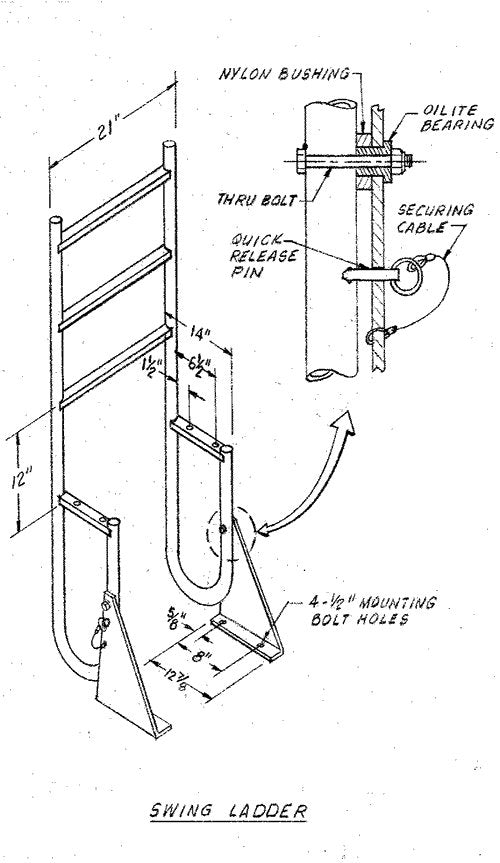

- Swing ladder allows you to pivot the ladder 180 degrees out of the water. This keeps the entire ladder out of the water and helps prevent marine growth.

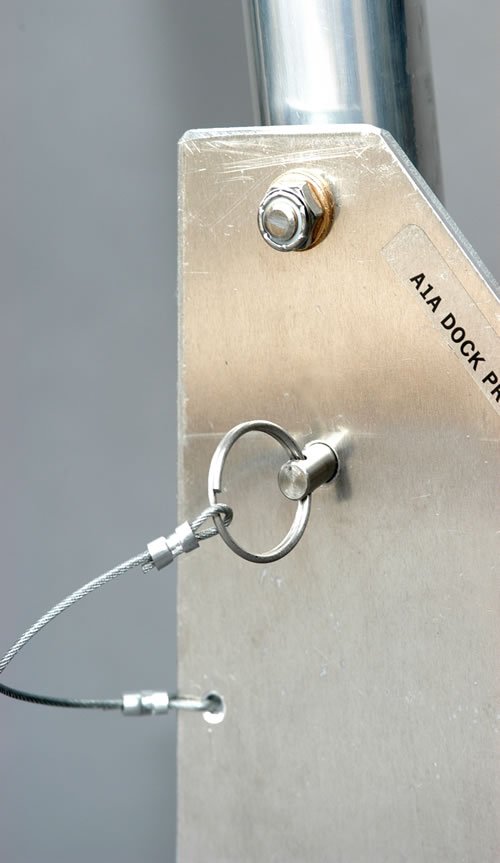

- Includes stainless steel locking pin to lock ladder into place when in the upright position.
- Constructed from 6063 T5 Marine Grade Aluminum.
- Tig Welded for maximum strength and durability.
- UPS Shippable 2-piece design. Handles are removable, steps are all-welded and assembled with 2000 lb sheering factor stainless steel bolts. This helps reduce shipping costs.
- Steps have extruded grooves to reduce slippage.
- 650 lb Max weight capacity.
- Requires 4 - 1/2" diameter bolts for mounting to your dock. Mounting bolts are not supplied since installations vary. Can be found at your local hardware store.
Shop all of our marine dock ladders selections for different ladders styles and pricing. DockLadderDepot.com offers a huge selection of ladders for dock owners, marinas, and contractors. Bulk pricing available for dock builders and contractors. Call us for details!
| Item #: | L-A1-SW3Wb |
| Finish: | Mill Finish |
| Tread Depth: | 2" |
| Ladder Width: | 21" |
| Step Height: | 12" |
| Handle Depth | 14" |
| Handle Height: | 23-1/4" |
| Overall Height (Raised): | 60" |
| Maximum Reach: | 36" |
| Weight Capacity: | 500 lbs. |
| Shipping Weight: | 26 lbs. |
| Manufacturer's Warranty: | 1 year, limited |
