4 Step Anodized Aluminum Swinging Dock Ladders

Description

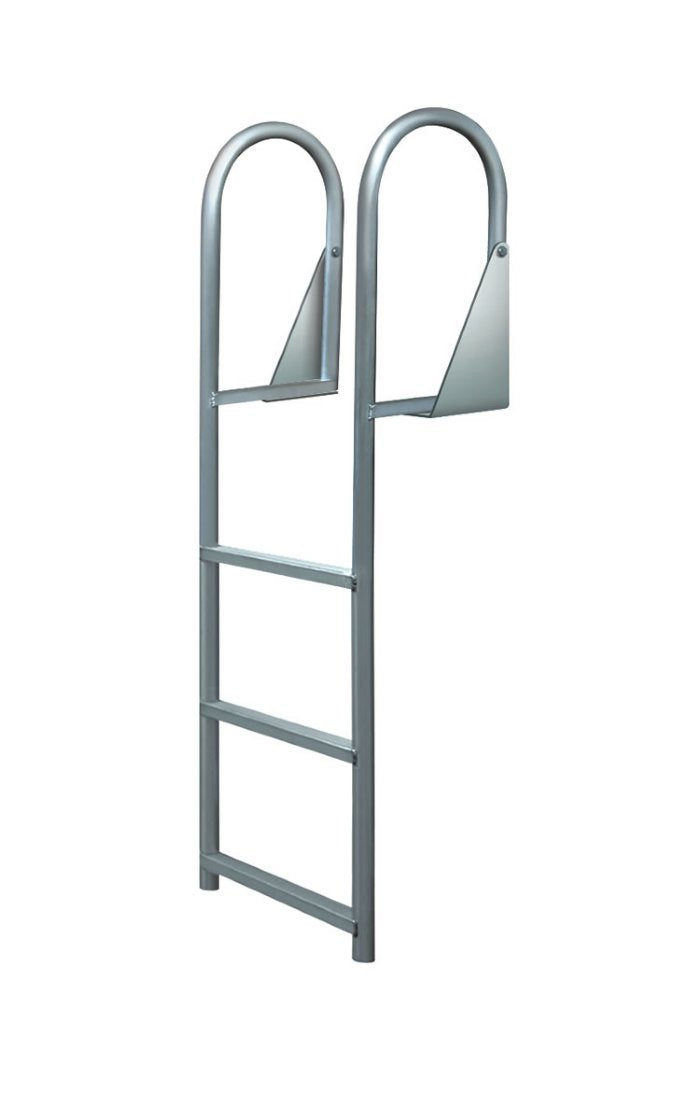

• (Picture shown is 3 step model).

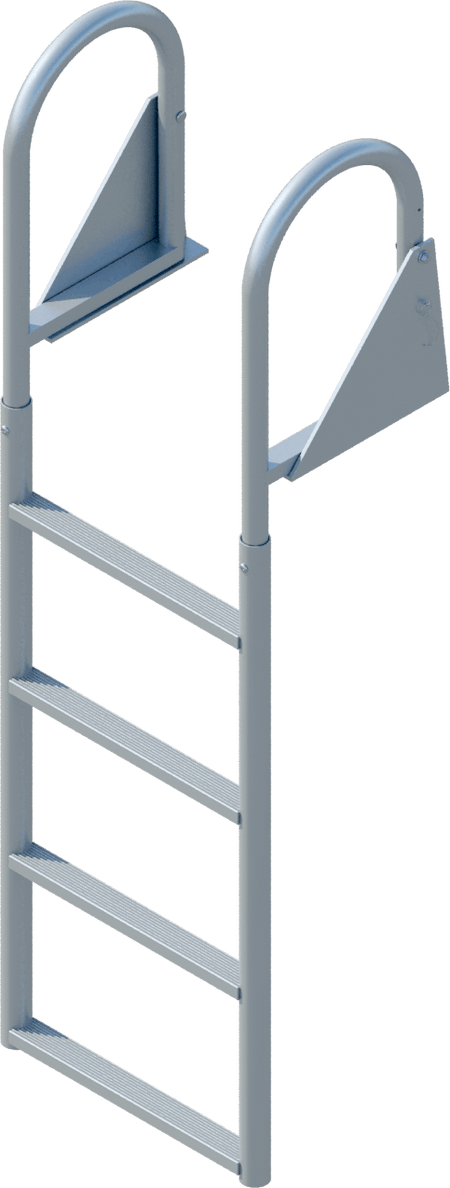

• 4 Step Anodized Aluminum Swinging Dock Ladder.
• Constructed from 6005T-5 Anodized Aluminum.
• 22% Stronger than standard 6063 marine grade aluminum ladders on the market.
• More resistant to corrosion = longer life span of the ladder.

• Strong, no gap welding on steps and other parts.
• Pivot brackets allow ladder to swing 180 degrees out of the water.  This helps reduce marine growth by keeping the entire ladder out of the water when not in use.

• Handles are bolt assembled to the all-welded UPS Shippable 2-piece design. Handles are removable, steps are all-welded and assembled with 2000 lb sheering factor stainless steel bolts. This helps reduce shipping costs.
• Ladder Width: 20"

• Handle Depth: 14"

• Step Height: 12" (each step is 12" apart)
• Step Depth: 2"

• 750lb Weight Capacity.


SKU	# of Steps	Weight Capacity	Total Distance from Top of Dock to End of Ladder	Outside Width (in.)	Handle Height (in.)	Handle Depth (in.)	Swing Bracket Depth (in.)	Step Width/Depth (in.)	Distance Between Steps (in.)	Mounting Bolt Hole Diameter (in.)	Net Weight (lbs.)
DJW3	3	750 lbs	36"	20"	20"	14"	10"	2"	12"	1/2"	20 lbs
DJW4	4	750 lbs	48"
