6 Step Floating Dock Lift Ladders

Description

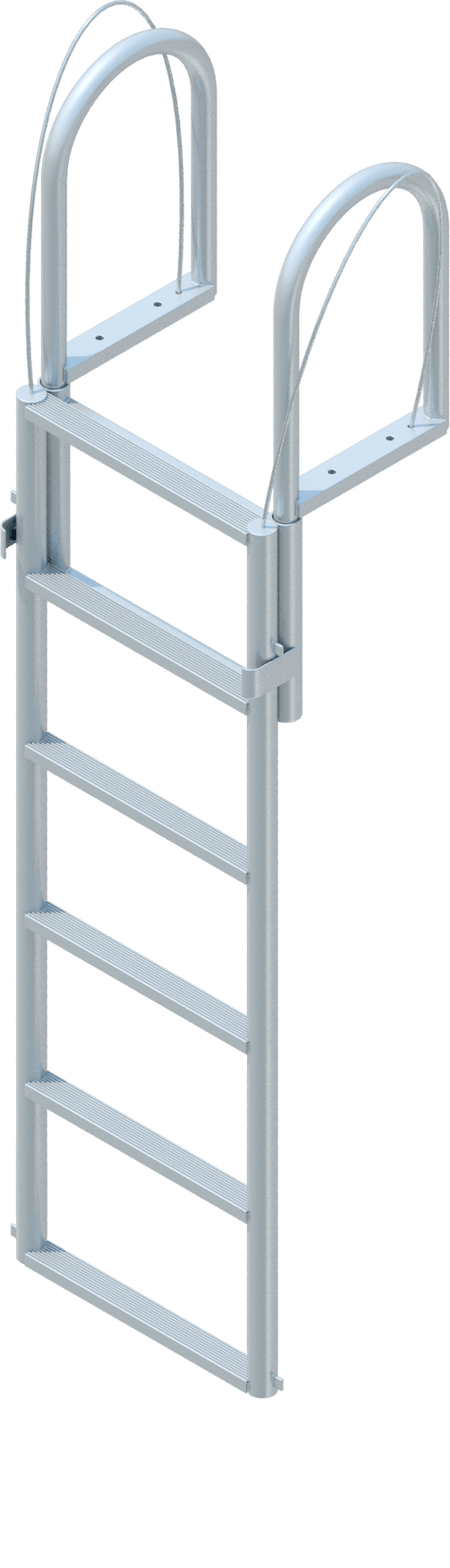

• (Picture shown is 5 Step Model with Standard 2" Steps/Treads).
• 6 Step Floating Dock Lift Ladder, Standard 2" Step, Aluminum.
• Ladder is retractable allowing you to pull the steps up and out of the water. This helps reduce marine growth which will increase the longevity of your ladder plus make it safer to climb on.
• The floating dock version has a shorter 13.5" base for lower profile floating docks. Unlike the standard 25" base found on all other lifting style ladders, this shorter base allows most of the ladder to be out of the water when in the retracted position.
• *** Please note, when determining ladder length needed you will lose one step with this ladder - for example normally a 5 step ladder will give you 5 feet full extended (each step is 12" apart). Because of the shorter base a 5 step floating dock lift ladder will give you 4 feet fully extended, 6 step will give you 5 feet fully extended etc etc.
• Includes poly coated steel grab wires to assist pulling up the ladder from the extended position.
• Constructed from 6063 T5 Marine Grade Aluminum.
• Tig Welded for maximum strength and durability.
• UPS Shippable 2-piece design. Handles are removable, steps are all-welded and assembled with 2000 lb sheering factor stainless steel bolts. This helps reduce shipping costs.
• Steps have extruded grooves to reduce slippage.
• 650 lb Max weight capacity.
• Requires 4 - 1/2" diameter bolts for mounting to your dock. Mounting bolts are not supplied since installations vary. Can be found at your local hardware store.

Additional Info

Item #:	L-A1-FDL6b
Finish:	Mill Finish
Tread Depth:	2"
Ladder Width:	21"
Step Height:	12"
Handle Depth	13-1/2"
Handle Height:	23-1/3-1/2"
Maximum Reach:	60"
Weight Capacity:	500 lbs.
Shipping Weight:	30 lbs.
Manufacturer's Warranty:	1 year, limited
