6 Step Lifting Dock Ladders

Description

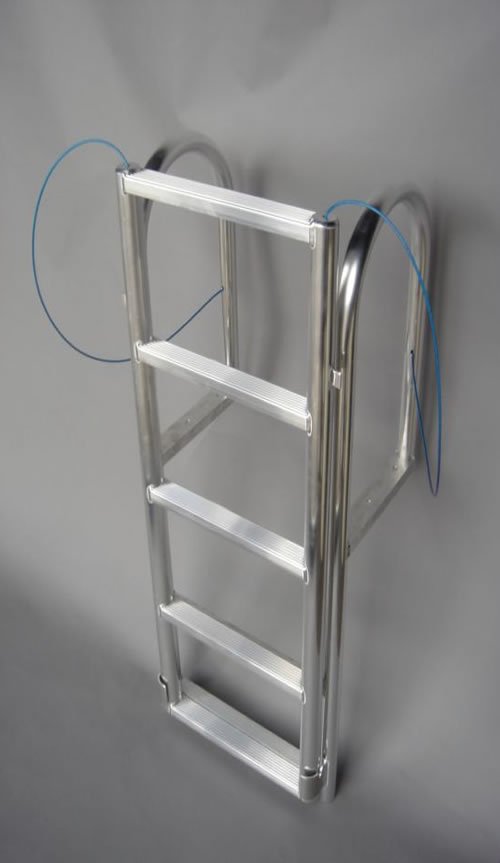

• (Picture shown is 5 Step Model with Standard 2" Steps/Treads).
• 6 Step Lifting Dock Ladder, Standard 2" Step, Aluminum.
• Ladder is retractable allowing you to pull the steps up and out of the water. This helps reduce marine growth which will increase the longevity of your ladder plus make it safer to climb on.

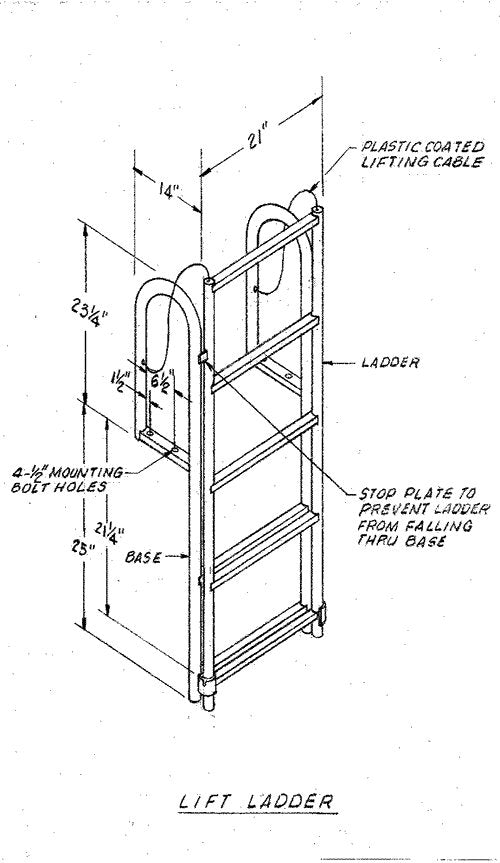

• Standard Base Length is 25" (the base is the section attached to the handles where the steps slide along).
• We also have a Short Base option (select above) which cuts 12" off the base giving you a 14.5" base length. This is ideal for lower profile docks where you can get the entire ladder out of the water. * Please note with the short base option you lose one step. So, if you need 5 feet fully extended choose the 6 step with the short base option (this will give you the short base with 5 feet fully extended).
• Includes poly coated steel grab wires to assist pulling up the ladder from the extended position.
• Constructed from 6063 T5 Marine Grade Aluminum.
• Tig Welded for maximum strength and durability.
• UPS Shippable 2-piece design. Handles are removable, steps are all-welded and assembled with 2000 lb sheering factor stainless steel bolts. This helps reduce shipping costs.
• Steps have extruded grooves to reduce slippage.
• 650 lb Max weight capacity.
• Requires 4 - 1/2" diameter bolts for mounting to your dock. Mounting bolts are not supplied since installations vary. Can be found at your local hardware store.

Additional Info

Item #:	L-A1-L6b
Finish:	Mill Finish
Tread Depth:	2"
Ladder Width:	21"
Step Height:	12"
Handle Depth	14"
Handle Height:	23-1/4"
Maximum Reach:	72"
Weight Capacity:	500 lbs.
Shipping Weight:	30 lbs.
Manufacturer's Warranty:	1 year, limited
