6 Step Wide Step Swinging Dock Ladders
A1A Dock Products 6 Step Wide Step Swinging Dock Ladder, Wide 3.5" Steps, Aluminum.
Regular price
$321.32
Couldn't load pickup availability
Got questions?
Feel free to get in touch
Ask an expert!

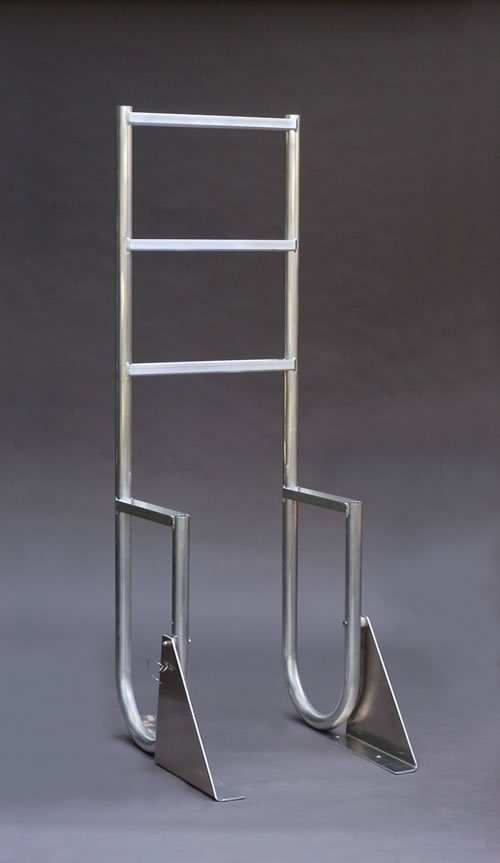

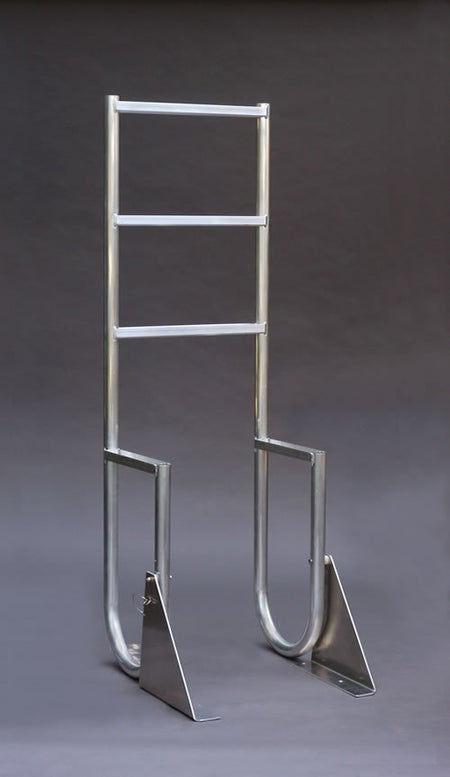

- (Picture shown is 3 Step Model with Standard 2" Steps/Treads).
- 6 Step WIDE STEP Swinging Dock Ladder, Wide 3.5" Step, Aluminum.
- Wider steps makes climbing in and out of the water more comfortable.
- Swing ladder allows you to pivot the ladder 180 degrees out of the water. This keeps the entire ladder out of the water and helps prevent marine growth.

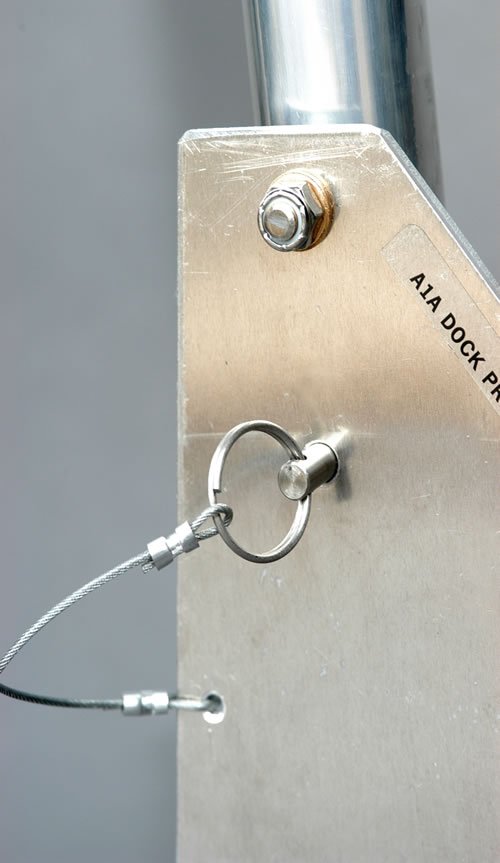

- Includes stainless steel locking pin to lock ladder into place when in the upright position.
- Constructed from 6063 T5 Marine Grade Aluminum.
- Tig Welded for maximum strength and durability.
- UPS Shippable 2-piece design. Handles are removable, steps are all-welded and assembled with 2000 lb sheering factor stainless steel bolts. This helps reduce shipping costs.
- Steps have extruded grooves to reduce slippage.
- 650 lb Max weight capacity.
- Requires 4 - 1/2" diameter bolts for mounting to your dock. Mounting bolts are not supplied since installations vary. Can be found at your local hardware store.
| SKU | # of Steps | Weight Capacity | Total Distance from Top of Dock to End of Ladder | Outside Width (in.) | Handle Height (in.) | Handle Depth (in.) | Swing Bracket Depth (in.) | Step Width/Depth (in.) | Distance Between Steps (in.) | Mounting Bolt Hole Diameter (in.) | Net Weight (lbs.) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A1A3WSTR | 3 | 650 lbs | 36" | 21" | 23 1/4" | 14" | 12 7/8" | 3.5" | 12" | 1/2" | 26 lbs |
| A1A4WSTR | 4 | 650 lbs | 48" | 21" | 23 1/4" | 14" | 12 7/8" | 3.5" | 12" | 1/2" | 29 lbs |
| A1A5WSTR | 5 | 650 lbs | 60" | 21" | 23 1/4" | 14" | 12 7/8" | 3.5" | 12" | 1/2" | 32 lbs |
| A1A6WSTR | 6 | 650 lbs | 72" | 21" | 23 1/4" | 14" | 12 7/8" | 3.5" | 12" | 1/2" | 35 lbs |
| A1A7WSTR | 7 | 650 lbs | 84" | 21" | 23 1/4" | 14" | 12 7/8" | 3.5" | 12" | 1/2" | 39 lbs |
| Item #: | L-A1-SW6Wb |
| Finish: | Mill Finish |
| Tread Depth: | 2" |
| Ladder Width: | 21" |
| Step Height: | 12" |
| Handle Depth | 14" |
| Handle Height: | 23-1/4" |
| Overall Height (Raised): | 96" |
| Maximum Reach: | 72" |
| Weight Capacity: | 500 lbs. |
| Shipping Weight: | 35 lbs. |
| Manufacturer's Warranty: | 1 year, limited |
