4 Step Wide Step Anodized Aluminum Straight Dock Ladders
JIF Marine 4 Step Wide Step Straight Dock Ladder, Wide 4" Steps, Anodized Aluminum.
Regular price
$349.00
Couldn't load pickup availability
Got questions?
Feel free to get in touch
Ask an expert!

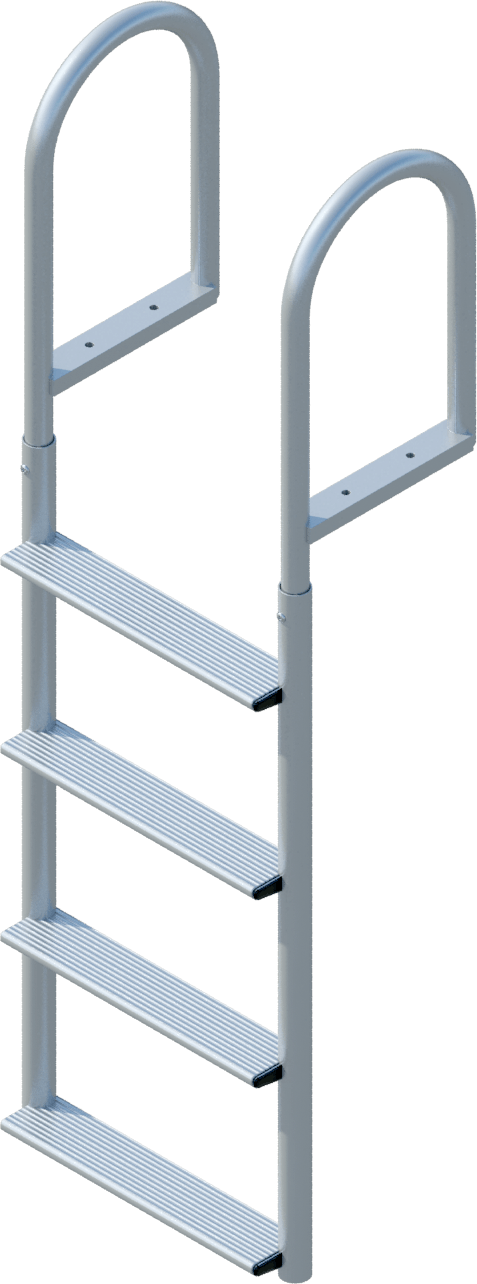

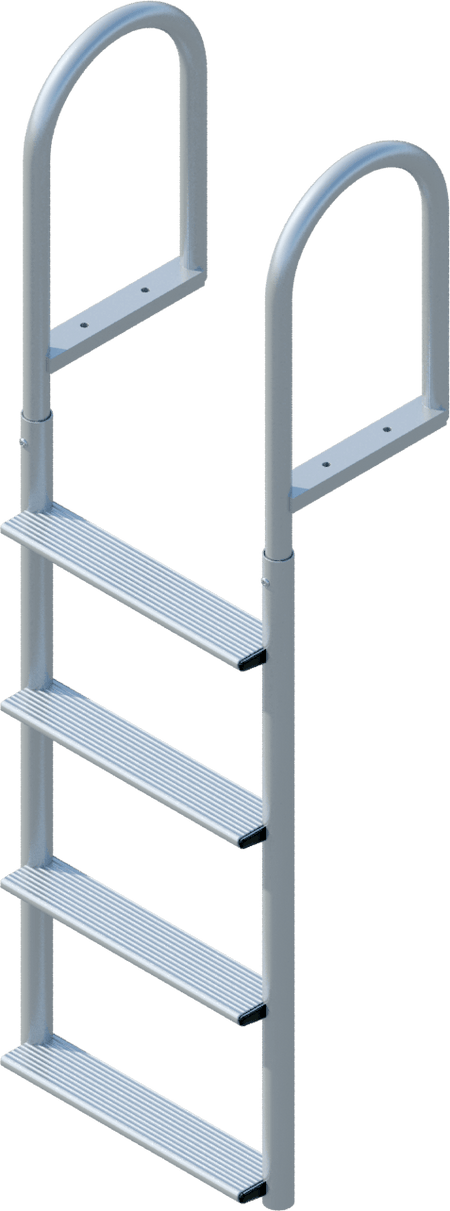

- (Picture shown is 4 step model).
- 4 Step WIDE STEP Anodized Aluminum Straight Dock Ladder.
- Constructed from 6005T-5 Anodized Aluminum.
- 22% Stronger than standard 6063 marine grade aluminum ladders on the market.
- More resistant to corrosion = longer life span of the ladder.
- Strong, no gap welding on steps and other parts.
- Handles are bolt assembled to the all-welded UPS Shippable 2-piece design. Handles are removable, steps are all-welded and assembled with 2000 lb sheering factor stainless steel bolts. This helps reduce shipping costs.
- Optional Quick Release Brackets are available at an extra cost - select from Option menu above.
- Ladder Width: 20"
- Handle Depth: 14"
- Step Height: 12" (each step is 12" apart)
- Step Depth: 4"
- 750lb Weight Capacity.
| SKU | # of Steps | Weight Capacity | Total Distance from Top of Dock to End of Ladder | Outside Width (in.) | Handle Height (in.) | Handle Depth (in.) | Step Width/Depth (in.) | Distance Between Steps (in.) | Mounting Bolt Hole Diameter (in.) | Net Weight (lbs.) |
|---|---|---|---|---|---|---|---|---|---|---|
| DJV3W | 3 | 750 lbs | 36" | 20" | 20" | 14" | 4" | 12" | 1/2" | 22 lbs |
| DJV4W | 4 | 750 lbs | 48" | 20" | 20" | 14" | 4" | 12" | 1/2" | 24 lbs |
| DJV5W | 5 | 750 lbs | 60" | 20" | 20" | 14" | 4" | 12" | 1/2" | 26 lbs |
| DJV6W | 6 | 750 lbs | 72" | 20" | 20" | 14" | 4" | 12" | 1/2" | 30 lbs |
| DJV7W | 7 | 750 lbs | 84" | 20" | 20" | 14" | 4" | 12" | 1/2" | 36 lbs |
